2nd attempt to explain chain-loop wedges

Postby gavin » Wed Mar 19, 2008 10:01 pm

Experimental idea to vary toolrest height
Powered turners constantly vary the height of toolrest, because they seek to get the most effective cut. The scheme I outline below really helps me. IÂ’ll be interested to hear your feedback.

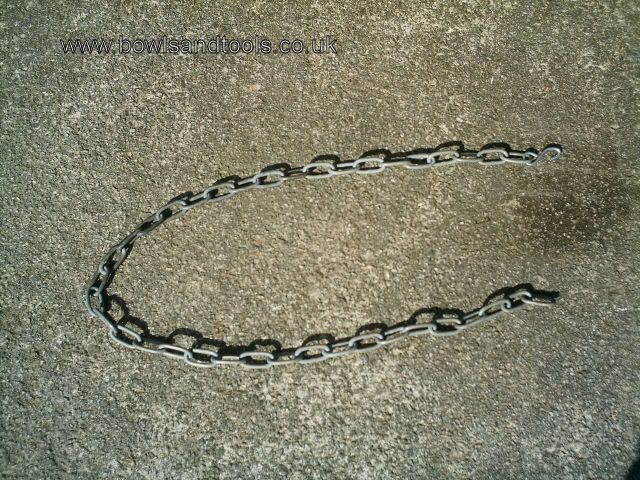

1. Take a loop of chain and fit an ‘S’ hook to one end: Image
2. Pass the chain round the lathe bed:
Image[/list]

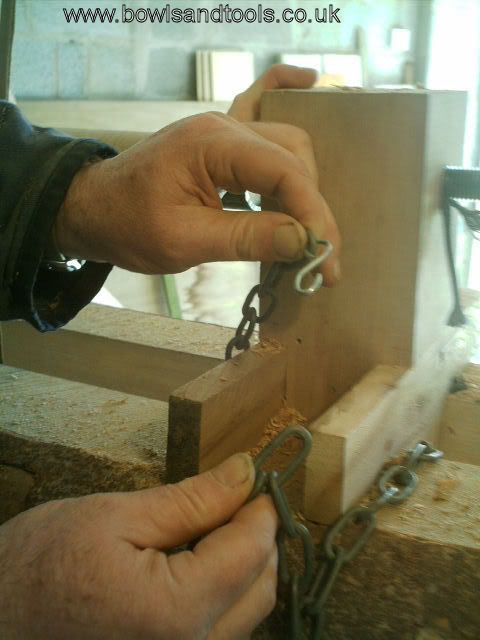

3. Connect the ‘S’ hook to make the loop the length you will need:

4. Offer the toolrest to the chain-loop:

5. Pass the toolrest inside the chain-loop:

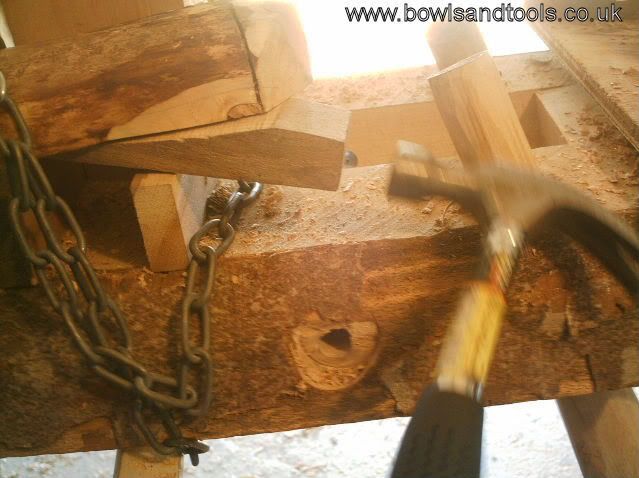

6. Drive a wedge under the toorest to raise it and tighten the chain-loop:

7. To make different heights, use different wedges and loop length:
Gavin Phillips


- teacher, demonstrator & supporter of greenwoodworking & human-powered turning
- Supplier of Fun & Confidence

info@shed-therapy.com
http://www.shed-therapy.com
User avatar
gavin
Regular

Posts: 1595
Joined: Mon May 16, 2005 4:17 pm
Location: Dalbeattie, near Dumfries, Scotland

Postby Robin Fawcett » Thu Mar 20, 2008 12:24 am

I can understand what's going on now Gavin and I'll look forward to seeing it all in action in Oxfordshire in May.
