Making you're mark

Postby JonnyP » Tue Jun 12, 2012 8:59 am

I just thought I would share how I do my mark, because it could be adopted by anyone wanting to do a makers mark..

My surname is Pickett and after looking at some old family name crests, I saw that some of them have a pickaxe on. Being a builder who often uses a pickaxe I wanted to use that symbol to go on my work.
I thought about how I was going to do it, and was going to ask a Blacksmith to make me something, but when I was using a soldering iron one day, an idea came to me..
This is what I did, and what anyone can do if they have the bits needed..

The things you need are a soldering iron with removable tips, a small file and a large headed "clout nail" that will fit inside the soldering iron. Thats it..!

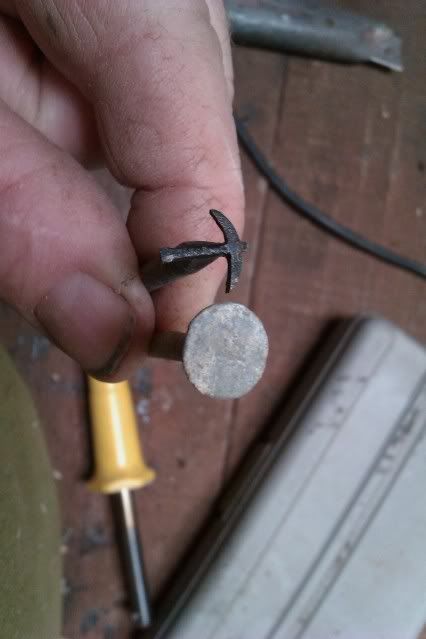

Next you need to file down the nail head to the shape you want. This is my pickaxe I did, also showing the nail size I filed it down from.

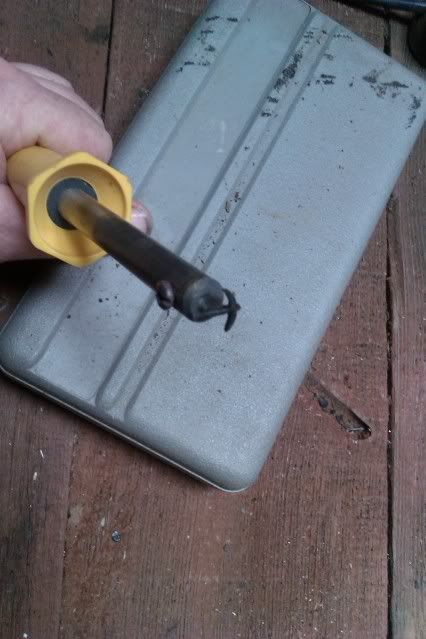

Once done remove the old tip from the soldering iron and put you're shaped nail in..

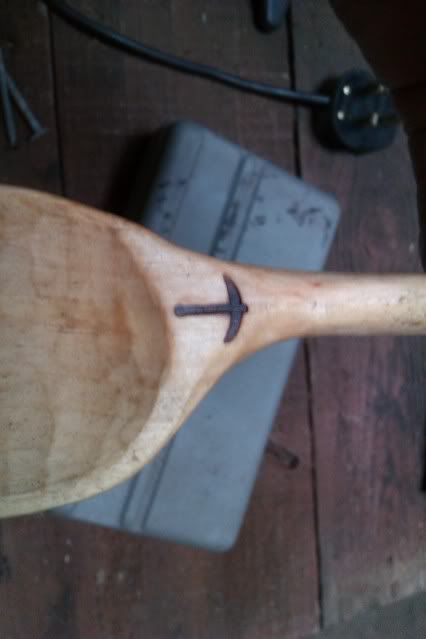

Then heat up the iron and brand you're woodwork :0)

Obviously some shapes will be a problem, but many shapes, letters and symbols could be filed..
User avatar
JonnyP
Regular

Posts: 258
Joined: Sun Nov 01, 2009 8:30 pm
Location: Cornwall

Re: Making you're mark

Postby chainsawkid » Tue Jun 12, 2012 10:36 am

:mrgreen: Fantastic infomation and great pics too. Just shows what can be done with a little (lot) thought :idea: , if you just get on with it!

might even try it myself :shock: (not a chainsaw though)

Well done :D

james
James Pumfrey
http://jamesthebowl.blogspot.co.uk/ Turning tales in Sussex
User avatar
chainsawkid
Regular

Posts: 82
Joined: Tue Mar 24, 2009 11:40 pm
Location: In my outhouse, Mid Sussex :-)

Re: Making you're mark

Postby trollwumple » Tue Jun 12, 2012 9:53 pm

Hi,

Great post and a really simple but wonderful idea, I am inspired to give it a go.

will
User avatar
trollwumple
Regular

Posts: 85
Joined: Wed Jul 02, 2008 11:46 pm
Location: limousin, France

Re: Making you're mark

Postby Bob_Fleet » Wed Jun 13, 2012 12:36 am

What wattage is your soldering iron?
Just had a look at mine and it's probably too small.
Yours look much more robust.
Nice idea.

I use a 'F' for my mark. Modified so it is three strokes from an L shaped chisel.
Idea from Robin Wood's 'W'
A brand always seemed an expensive option.
Maybe not.

HERE is an earlier thread.
http://www.onegoodturn.co.uk

Society is like a stew. If you don't keep it stirred up, you get a lot of scum on top.--Edward Abbey

Come and see us all at http://www.wooplaw.org.uk
User avatar
Bob_Fleet
Regular

Posts: 666
Joined: Tue Aug 15, 2006 8:11 pm
Location: Sunny Dunbar

Re: Making you're mark

Postby Darrell » Wed Jun 13, 2012 1:43 am

One of the guys on the OldTools email list mentioned using an old copper soldering iron for a brand. The copper is really easy to work, holds the heat well, and can be heated on a stove or in a fire or with a propane torch. So I picked up an old soldering iron cheap, to experiment with.

Someday.
Wood Hoarder, Blade Sharpener, and Occasional Tool User
User avatar
Darrell
Regular

Posts: 127
Joined: Sat Feb 11, 2006 8:42 pm
Location: Oakville Ontario, Canada

Re: Making you're mark

Postby JonnyP » Wed Jun 13, 2012 12:47 pm

Cheers chaps..

Bob.. It doesn't say what the wattage is on the iron, but its a fairly small iron being 8 inches long in total.
I did about 10 to 15 stamps with it a few days ago and it coped ok, leaving it to rewarm for a little between each stamp..
User avatar
JonnyP
Regular

Posts: 258
Joined: Sun Nov 01, 2009 8:30 pm
Location: Cornwall

Re: Making you're mark

Postby Bob_Fleet » Wed Jun 13, 2012 10:05 pm

Got it.
A bit easier for my shape.
Thanks Jonny - solved a problem there for me.
http://www.onegoodturn.co.uk

Society is like a stew. If you don't keep it stirred up, you get a lot of scum on top.--Edward Abbey

Come and see us all at http://www.wooplaw.org.uk
User avatar
Bob_Fleet
Regular

Posts: 666
Joined: Tue Aug 15, 2006 8:11 pm
Location: Sunny Dunbar

Re: Making you're mark

Postby JonnyP » Thu Jun 14, 2012 12:17 pm

Ahh, good. Glad it helped :D
User avatar
JonnyP
Regular

Posts: 258
Joined: Sun Nov 01, 2009 8:30 pm
Location: Cornwall

Re: Making you're mark

Postby jrccaim » Mon Jun 18, 2012 4:30 am

Great idea. Pyrography strikes again. Don't even need a soldering iron. Make your mark, as JonnyP did. Heat it up red hot with a propane torch or your trusty kitchen stove. Grab it with pliers or vice-grips. Burn it in. Bravo! Noted in my bag of tricks file. Just like branding calves, as a cowboy would say.
User avatar
jrccaim
Regular

Posts: 1082
Joined: Sun Nov 02, 2008 3:53 am
Location: Willow, Alaska USA

Re: Making your mark

Postby ToneWood » Wed Jun 20, 2012 10:36 pm

That's darn clever! Should save a little time and improve consistency. Coincidentally I was unhappy with a maker's mark I'd carved on a big oak bowl this weekend, so I went over it with a little variable heat soldering iron (designed for electronics rather than heavy electrics/plumbing, 10-50W - cheap from Maplins, given a choice opt for the more expensive flexi-cable option) set on full . It came out quite well: darker, thicker, clearer.

BTW I like you pick axe brand (it also looks a little like an elegantly stylized swift). Also the F works real well too.

I'm not sure if I can readily make a brand from my mark though - thought the design was pretty simple but filing it from a nail head would be challenging. Perhaps I need a simpler mark or a different technique to make the brand. Hmm.
Last edited by ToneWood on Fri Aug 10, 2012 6:34 pm, edited 3 times in total.
ToneWood
Regular

Posts: 1846
Joined: Mon Jan 30, 2012 2:21 pm

Re: Making you're mark

Postby Bob_Fleet » Thu Aug 09, 2012 11:58 pm

This week if you're quick.
http://www.onegoodturn.co.uk

Society is like a stew. If you don't keep it stirred up, you get a lot of scum on top.--Edward Abbey

Come and see us all at http://www.wooplaw.org.uk
User avatar
Bob_Fleet
Regular

Posts: 666
Joined: Tue Aug 15, 2006 8:11 pm
Location: Sunny Dunbar

Re: Making you're mark

Postby ToneWood » Fri Aug 10, 2012 6:39 pm

This one, £8.99 at Lidl? http://www.lidl.co.uk/cps/rde/xchg//lid ... =noservice
Description
  • Great for decorating and inscribing wood, cork or leather
  • Includes 7 stamps with different designs and 7 different writing tips
  • Max. working temperature approx. (°C): 550
  • 30 watt
  • Includes iron holder

Image Bargain! (But don't count on your first attempts looking like that sample picture.)
ToneWood
Regular

Posts: 1846
Joined: Mon Jan 30, 2012 2:21 pm

Enantoimeric mark. Da 'ah!!

Postby arborrider » Tue Aug 14, 2012 10:42 pm

Bad habit. I'm a bit of a pack rat. So I have lots of odds & ends sitting around. Because you never know when you will need that odd item. Today grabbed some worn chainsaw files, a few inches of left over doweling and a grade 2 carriage bolt to create a maker's mark. A few problems. Bit too large & almost completed I realized the mark will burn a mirror image of what I intended. Design problem of being too busy. I'm a bit of a dolt. Mark was supposed to consist of the letters: N,V,H. Next time just a N.
Attachments
Maker's Mark.JPG
Maker's Mark.JPG (33.85 KiB) Viewed 12324 times
noelh
I may be dull, but my blades are sharp:)
arborrider
Regular

Posts: 34
Joined: Mon Jul 02, 2012 10:50 pm
Location: Bayview Township, northwoods of Wisconsin along the SouthShore of Lake Superior

Re: Enantoimeric mark. Da 'ah!!

Postby Bob_Fleet » Wed Aug 15, 2012 12:24 am

arborrider wrote: I realized the mark will burn a mirror image of what I intended.
You did that too?
Join the club.
http://www.onegoodturn.co.uk

Society is like a stew. If you don't keep it stirred up, you get a lot of scum on top.--Edward Abbey

Come and see us all at http://www.wooplaw.org.uk
User avatar
Bob_Fleet
Regular

Posts: 666
Joined: Tue Aug 15, 2006 8:11 pm
Location: Sunny Dunbar

Re: Making you're mark

Postby jrccaim » Wed Aug 15, 2012 3:56 am

If you are patient enough you can file a maker's mark out of any old piece of steel square or round stock. Junk steel, in fact. No tempering or heat treating required, in fact totally unneccessary. What I would recommend is set of "swiss files." These are jeweler's files,small and agile. Also called "needle" files. Mine are used so often I keep them on the dining/crafts table on the kitchen. Here's a linked image so's you know what I am talking about:

http://www.micromark.com/12-piece-swiss-pattern-needle-file-set,6787.html

This looks like a nice set and at about $8 it will not exactly break your wallet. I just looked up the exchange rate for the day, 1.56 dollars per quid, and I am certain Axmister's sells them. Not a problem.

Another way to cut maker's marks is a Dremel-type tool and a set of diamond cutters. This is a power tool and I can understand your reluctance to use them; however it is very fast. But you do need a steady hand! All too easy to ruin stuff with power tools. However, it is junk steel. So if you make a mistake, grind (or file) it flat and start over. And while I am at it, if you do have a nice maker's mark, you might be able to hold it over the wood and strike it with a hammer. This will imprint the maker's mark into the wood. To really get away with this, you need sharp edges on the mark. I have a set of dies that will do A-Z this way, cheap at an Asiatic tool sale.
User avatar
jrccaim
Regular

Posts: 1082
Joined: Sun Nov 02, 2008 3:53 am
Location: Willow, Alaska USA
